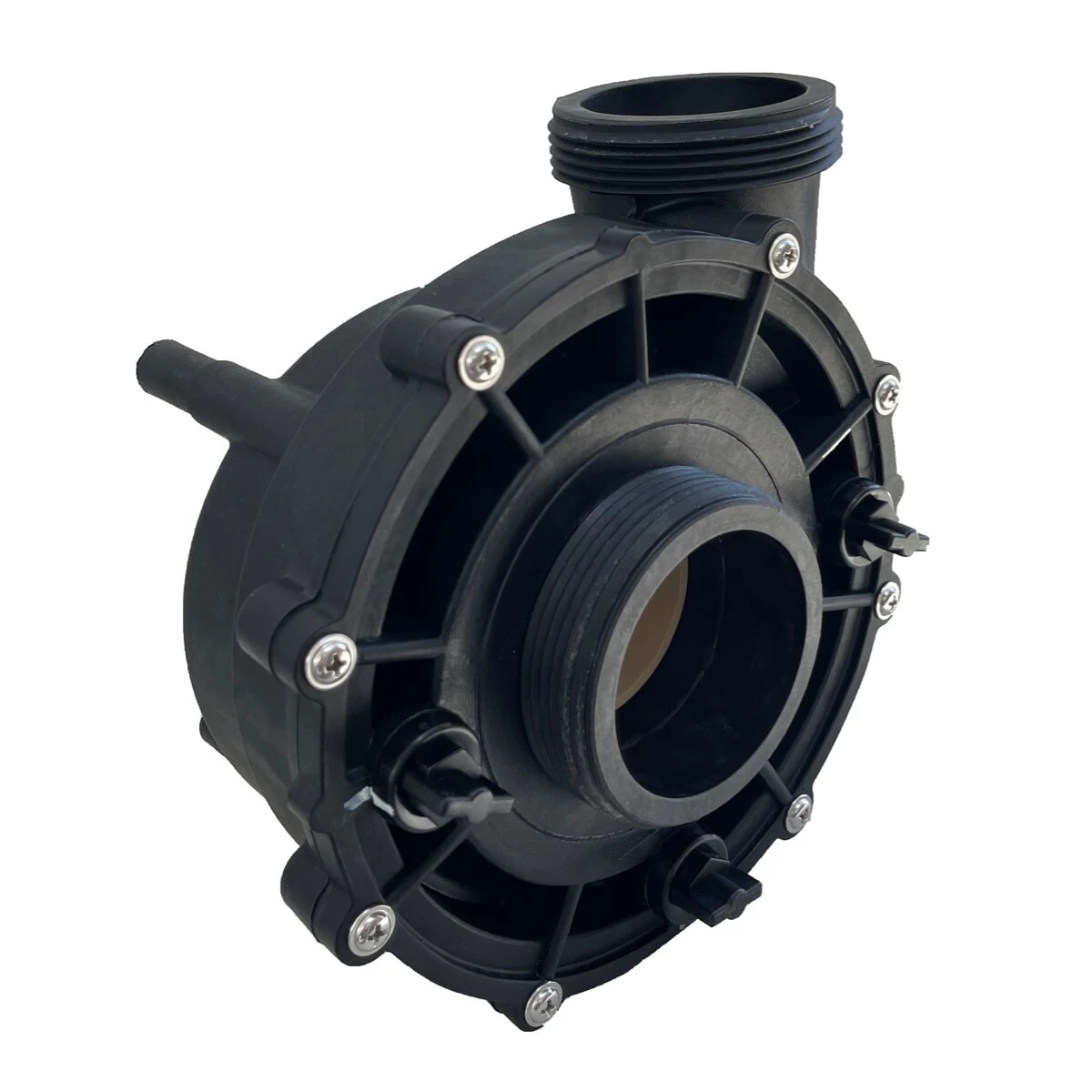

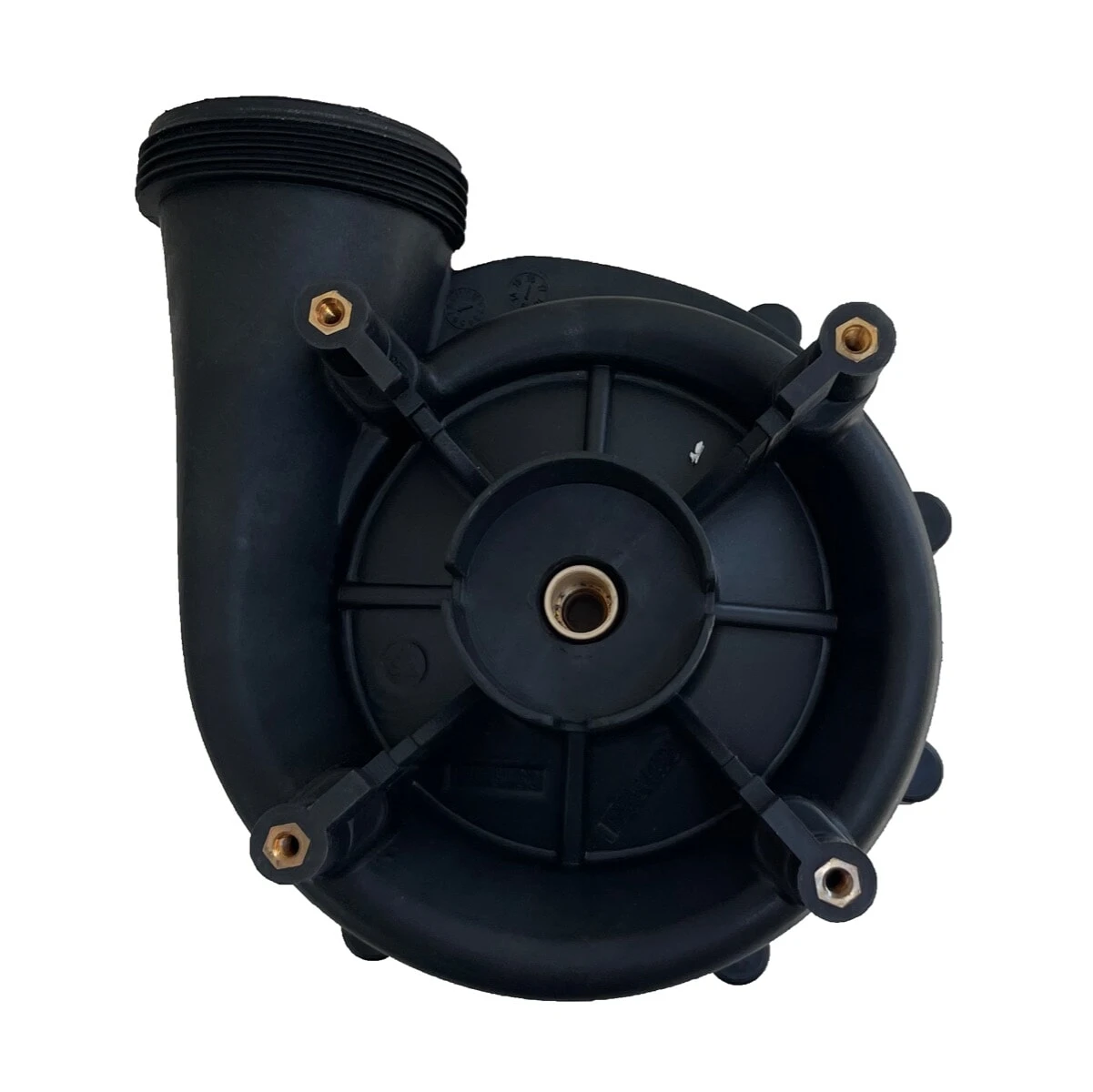

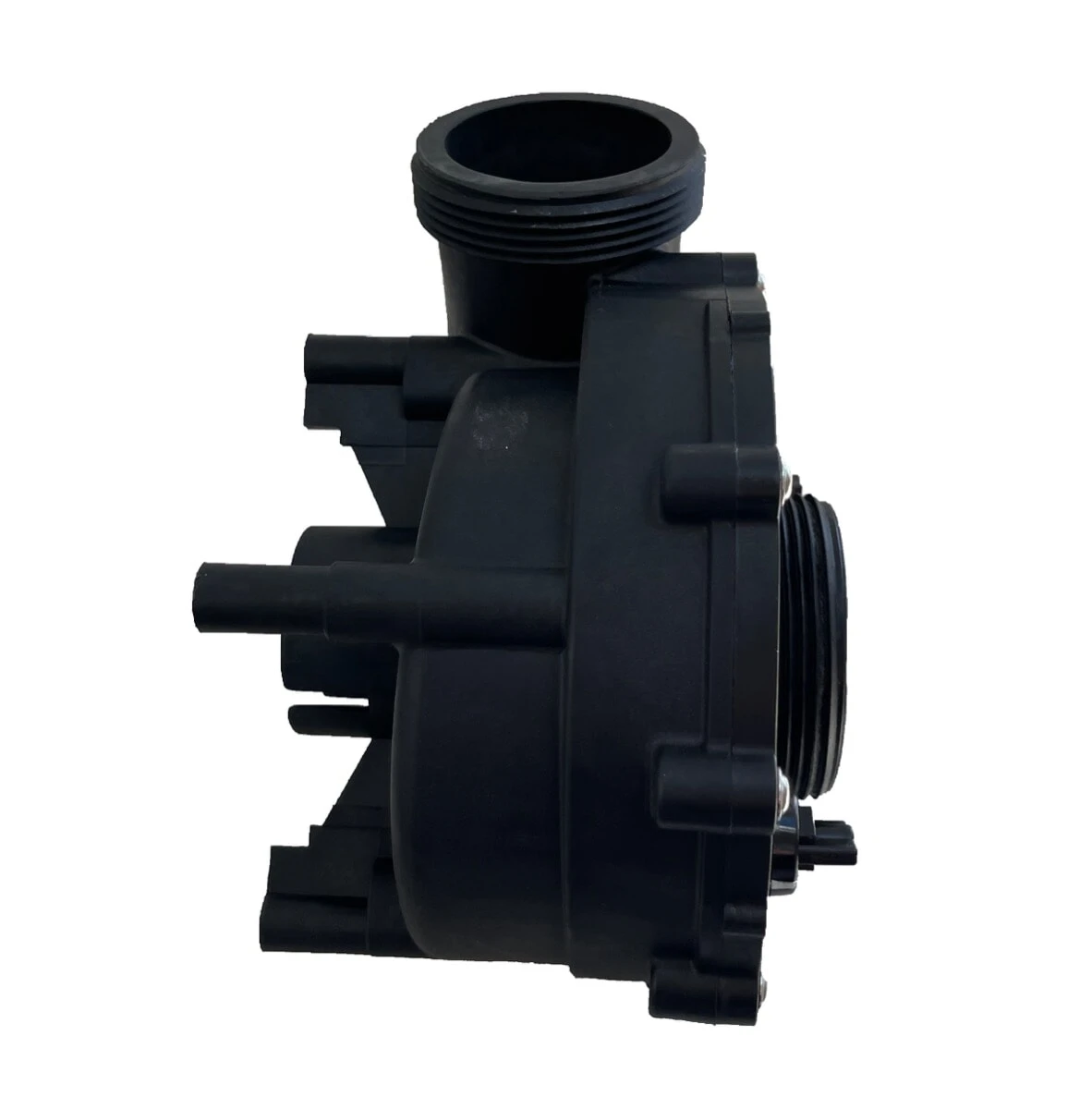

Hot Spring Wavemaster 2.5HP Pump Wet End 77715

Replacement wet end for 2.5HP 50Hz Hot Spring Wavemaster Pumps.

Includes 1 x barb fitting for the bleed valve if you have this fitted. If not, the caps are alresady fitted so the bleed valve can remain capped off.

Union diameter is 3 inch.

Diagnostics

Hot Spring Wavemaster Jet Pump Leaking

This is most likely the seal leaking. Check around and under the wet end. If the drip or leak is directly below, it is likely to be the seal that is leaking and replacing the wet end on the pump should resolve this.

Hot Spring Wavemaster Jet Pump Impeller Faulty

If the motor seems to be operating correctly but the impeller is seized then the wet end may need replacing. Please note that it is more likely that the shaft has seized on the motor in this case but sometimes the impeller on the wet end can be faulty or broken.
